Modernization

Courion can help modernize any existing elevator freight door system. Upon supply of the Job Number, Job Name, and/or Job Location, along with the Elevator/Shaft Number and Landing/Entry Number to design a solution tailored to the specific needs of any freight elevator.

Modernization
Modernize Your Freight Doors

Available Hoistway Door Panels

Need to Upgrade All Of Your Hoistway Door Equipment Or Just Replace A Damaged Hoistway Door Panel?

Courion can help you modernize any existing elevator freight door system. All we need is the Job Number, Job Name, and/or Job Location, along with the Elevator/Shaft Number and Landing/Entry Number to design a solution for you.

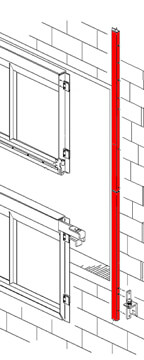

Bent Hoistway Door Guide Rails?

Upper Guides are labeled with the Courion door mark corresponding to the opening for which they serve as the upper guide. (Example: the upper guide rails for Opening 2 will be marked 2R and 2L)

Intermediate Guides are labeled with the Courion door mark corresponding to the opening for which they serve as the upper guide. (Example: the intermediate guide rail shown between Opening 1 and Opening 2 will be marked 1R and 1L)

Lower Guides are labeled with the Courion door mark corresponding to the opening for which they serve as the lower guide, followed by the letter “A”. (Example: the lower guide rails for Opening 1 will be marked 1A-R and 1A-L)

The HAND is determined by standing in the car and looking out. Right Hand shown.

Need a new pair of shoes?

Courion maintains a wide variety of Adjustable Guide Shoes, including the NEW LF96 Guide Shoe with low-friction bearing surfaces.
Modernize Your Car Gate System

Available Car Gate Systems

Need A New Car Gate System?

Courion can help you modernize any existing freight elevator car gate system. All we need is the Job Number, Job Name, and/or Job Location, along with the Elevator/Shaft Number and Landing/Entry Number to design a solution for you.

Need A New Gate Panel Or Gate Guides?

Courion can help you modernize any existing freight elevator car gate system. All we need is the Job Number, Job Name, and/or Job Location, along with the Elevator/Shaft Number and Landing/Entry Number to design a solution for you.
Add Power Operation To Your Existing Freight Doors

Courion can provide you with a Power Conversion Package for almost any Freight Elevator Door Job, including:

  • COURION
  • SECURITY
  • HARRIS PREBLE
  • GUILBERT
  • PEELLE
  • EMS
  • WESTINGHOUSE
  • OTIS

Courion’s Power Conversion Package contains all of the equipment necessary to power operate your existing freight doors, including:

  • Door Operators
  • Interlocks
  • Limit Switch
  • Courion Door Controller with sequence operation and firefighters service.
  • Retiring Cam Assembly
  • Complete Power Operated Gate
  • Emergency Unlocking Devices (when required)
  • New Courion LF-96 Door Shoes
  • Auto-Sta Set Switch
  • Courion’s CARE Reversing Edge
  • NEMA 4X, 7, and 9 Equipment
  • Wiring Material
Keep Your Hoistway Doors and Car Gate Safe

CARE Automatic Reversing Edge

Courion can add the CARE Automatic Reversing Edge System to almost any existing freight door system. The Courion CARE Automatic Reversing Edge is a cost effective way to reduce damage to freight elevator doors normally caused by freight movement.

Door Panel Safety Meeting Rail Assembly

The length of the Door Panel Safety Meeting Rail Assembly depends upon the length of your door panel. To insure that you receive the correct replacement part, please consult with a Courion Customer Service Representative prior to ordering.

Available also in Loop Style.

Gate Reversing Edge Assembly

The length of the Gate Reversing Edge Assembly depends upon the length of your gate panel. To insure that you receive the correct replacement part, please consult with a Courion Customer Service Representative prior to ordering.

Standard NEMA 1 rating. Explosion-Proof (NEMA 7 & 9) and Dust, Moisture & Oil Resistant (NEMA 4, 12, & 13) available.
